Product Description

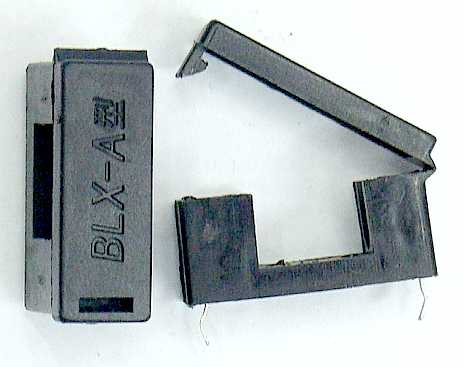

PCB fuse holders for 5x20mm glass fuses, the pin spacing is 15mm with no center tab. En60127-6 rates this fuse holder at 1. 6 Watts, 6. 5 Amps at 125 VAC and ul listed is 10 Amps at 250 VAC.
- Type: Fuse Holder
- Fuse type: Tube Fuses
- Mounting: PCB
- Fuse size: 5x20mm
- Operating temperature: -30…85°C
- Maximum current: 6.3A
- Body material: thermoplastic
- Pitch: 22.6mm
- Colour: Black
- Rated voltage: 250V AC
- Contact resistance: 5mΩ
- Leads lenght: 3.5mm
- Hole diameter: Ø1.5mm
- Dimensions: 24.4 x 10.5 x 9.4mm
